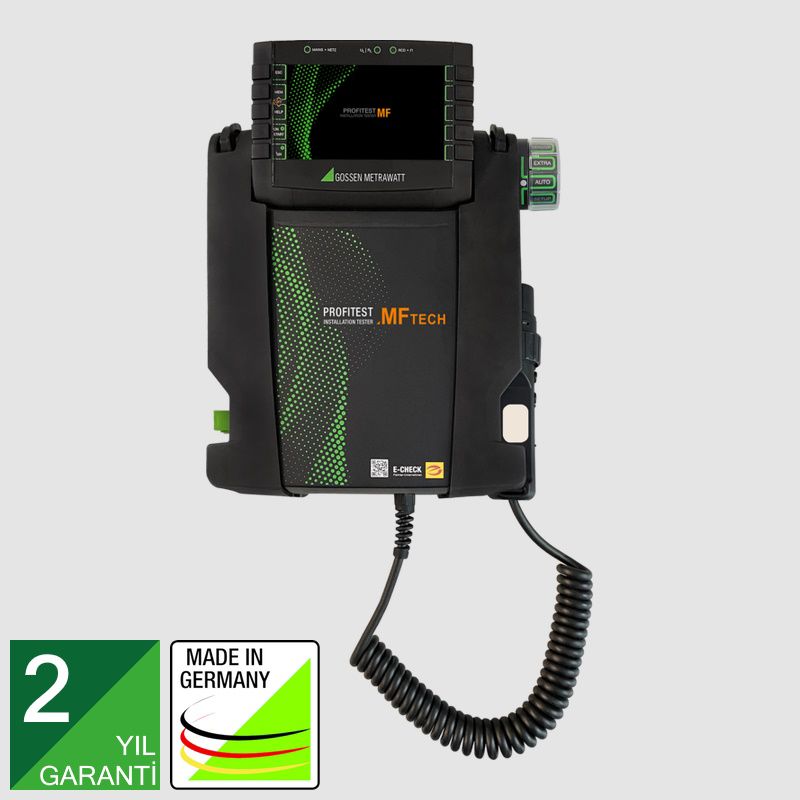

Profitest MF Tech Multifunctional Tester (New)
Measuring and Test Instrument for Testing the Effectiveness of Protective Measures at Stationary Electrical Installations After Installation, Repair or Expansion, and for Periodic Testing (DGUV regulation 3)
The PROFITEST MF TECH provides all measuring and test functions for testing the effectiveness of protective measures at stationary electrical installations – with predefined, or optionally with programmable test sequences which are required in accordance with test standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV / 600 V CAT III.
The PROFITEST MF TECH makes your investment decision easy because it’s the ideal test instrument for routine daily work – day after day – thanks to its scope of functions for professional electricians which is perfectly matched to your requirements. Test report generation is quick and easy thanks to optimized operation and the practical memory concept. You save time with every measurement and you’re able to complete more measurements each day. Furthermore, once a system structure has been created it can be used for all PROFITEST instruments. As a result, all employees conduct testing in exactly the same way. And with the PROFITEST service guarantee, you can be sure that your test instrument will still be up to date even 10 years down the road.
Product Highlights
Context-sensitive color graphic display
Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
Preconfigured and user programmable test sequences for testing electric systems quickly
Storage concept for up to 50,000 data records
Testing of all up-to-date AC/DC sensitive RCDs, RDC-DDs and RCMBs
User safety thanks to PE detection when using finger contact
Forward-looking connectivity
Your advantages
Intuitive operation thanks to innovative user prompting
Test sequences for efficient work
Standards-compliant testing in accordance with ZVEH
Legally secure documentation via interfaces
Broad range of applications thanks to diverse measuring options
Convenient work procedures without any bothersome replugging of the measurement cables
Can be used all over the world thanks to language selection
Future-proof thanks to on-site firmware updates
Cascadable, future-proof software concept
On-site help thanks to help function with wiring diagrams
Applications
Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100) and other country-specific standards. Testing of electric charging points per EN 61851-1 (DIN VDE 0122-1).
Technical characteristics
Broad-range measuring instrument for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
Loop and line impedance measurement with DC bias magnetization
Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
Low-resistance measurement with automatic polarity reversal
Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, A-EV,F, F-EV, B, B+ and B-MI)
Testing of RCCBs in IT systems
Testing of RDC-DDs per IEC 62955 and RCMBs per DIN EN 62752
Earth resistance measurement (mains operation)
Standards-compliant testing of charging stations per IEC 61851-1 in combination with the Metraline PRO-TYP EM test adapter
Automatic test sequence function
USB port
Push-print function – measured value transmission after measurement
Delivery
1 PROFITEST MF TECH
1 Earthing contact plug insert (country-specific)
1 Two-pole measuring adapter
1 Cable for expansion into a 3-pole adapter (PRO-A3-II)
2 Alligator clips
1 Neck strap
1 Set of rechargeable batteries (Z502H)
1 Charger (Z502R)
1 Condensed operating instructions
1 Supplementary sheet with safety information
1 DAkkS calibration certificate
1 USB interface cable
1 IZYTRONIQ Business Starter software license
1 Coupon for 12-month cloud subscription
Product Code: M535K
