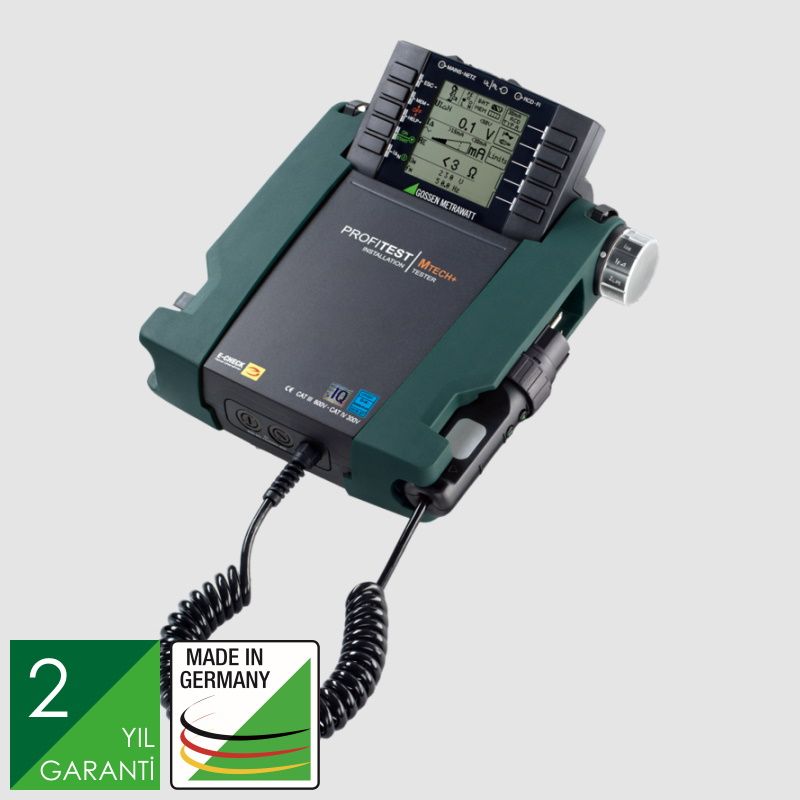

A broad-range measuring device allows for use of the test instrument in all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz.
- Loop and line impedance measurement
- Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
- Low-resistance measurement
- Earth resistance measurement
- Standing-Surface Insulation Measurement
- Universal connector system
Bluetooth interface for ProfiScan app
Features
- Selectable user interface language
- Memory (database for up to 50,000 objects)
- Automatic test sequence function
- RS 232 port for RFID/barcode scanner
- USB port for data transmission
- ETC user software for PC
- Measuring category: CAT III 600V / CAT IV 300V
- DAkkS calibration
Scope of Delivery
- 1 Test instrument
- 1 Earthing contact plug insert (country-specific)
- 1 2-pole measuring adapter and 1 cable for expansion into a
- 3-pole adapter (PRO-A3-II)
- 2 Alligator clips
- 1 Shoulder strap
- 1 Set of rechargeable batteries (Z502H)
- 1 Battery charger Z502R
- 1 Condensed operating instructions
- 1 Supplement Safety Information
- 1 DAkkS calibration certificate
- 1 USB cable
Product Code: M535L
Old Product Codes: M535B, M520R
