Radioactivity Meter
Radioactivity Meter Product code: 9320008 Model: RayDetector 4040 Brand: Iteco Warranty Time: 24 REQUEST FOR SUBMISSION
Share:
Save Print

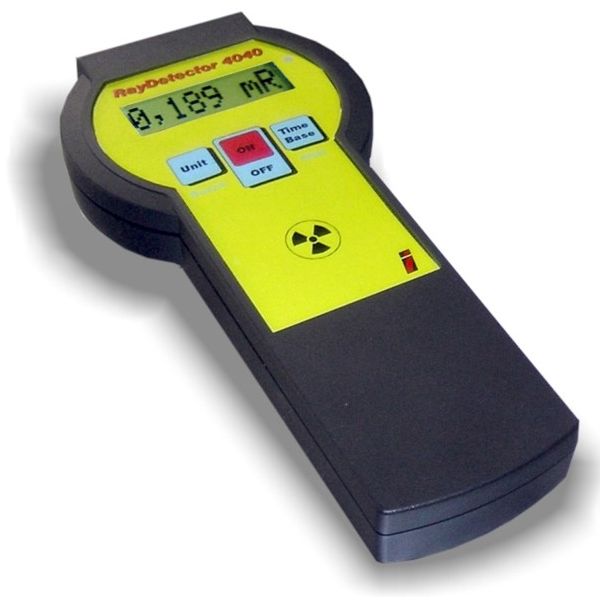

   The RayDetector 4040 is a Geiger counter (radioactivity meter), different from similar analog types which are difficult to read. It's equipped with a digital display and the sensor is a Geiger-Muller halogen tube.
   It is possible to get the radioactivity measurement in the following units: mRem/h, μSievert/h, cps or cpm.
   When a ionogenic radiation, with sufficient energy, comes into contact with the Geiger Muller tube, a lightning indicator (red led on the right of the display) and a buzzer are activated.



   Application fields
- Survey of personal exposure
- Verification of material of unknown origin
- Search of radioactive minerals





   Product Code: 9320008

Save Print

- Sensor: Geiger Muller tube (41mm x 15mm diameter)

- Display: 8 digits alphanumeric, 48x11mm
- Radiation sensitivity: Alpha, Beta and Gamma
- Range: 0,01 - 100μSv/h (equivalent to 0,001 - 10 mRem/h)
- Units: milliRem/h, μSv/h, pulse/sec, pulse/min, totalizer
- Buzzer: can be disabled
- Stats Function: useful to know the average radioactivity during 1 hour or 1 day
- Power consumption: on average less than 4 mA, so the instrument can measure over 100 hours with alkaline batteries.
- Power supply: 1 battery 9V (included)
- Dimensions: 200x95x40mm
- Weight: 240g
- Standard accessories: plastic carrying case
