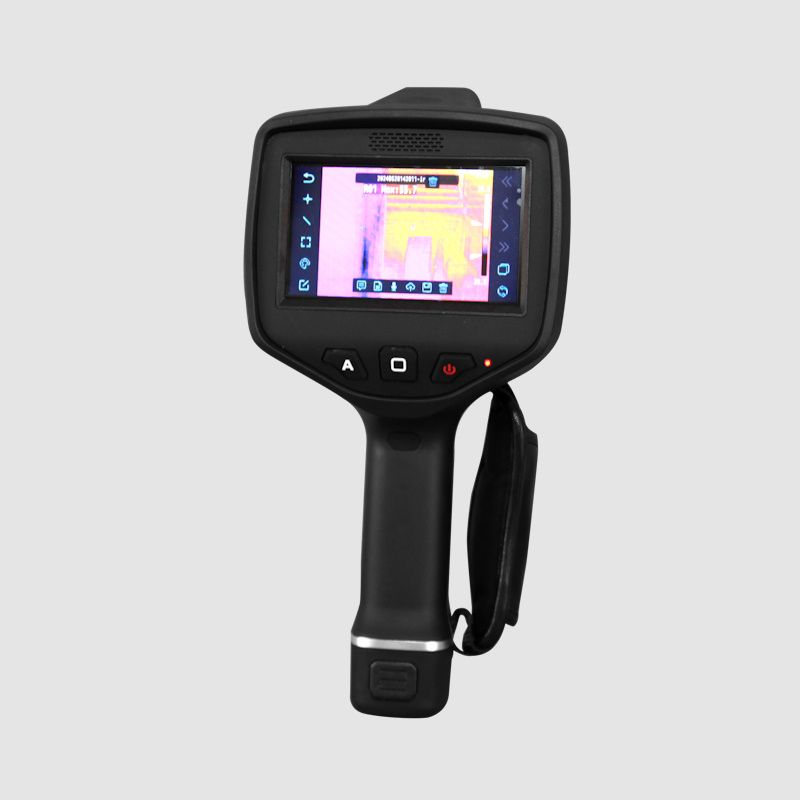

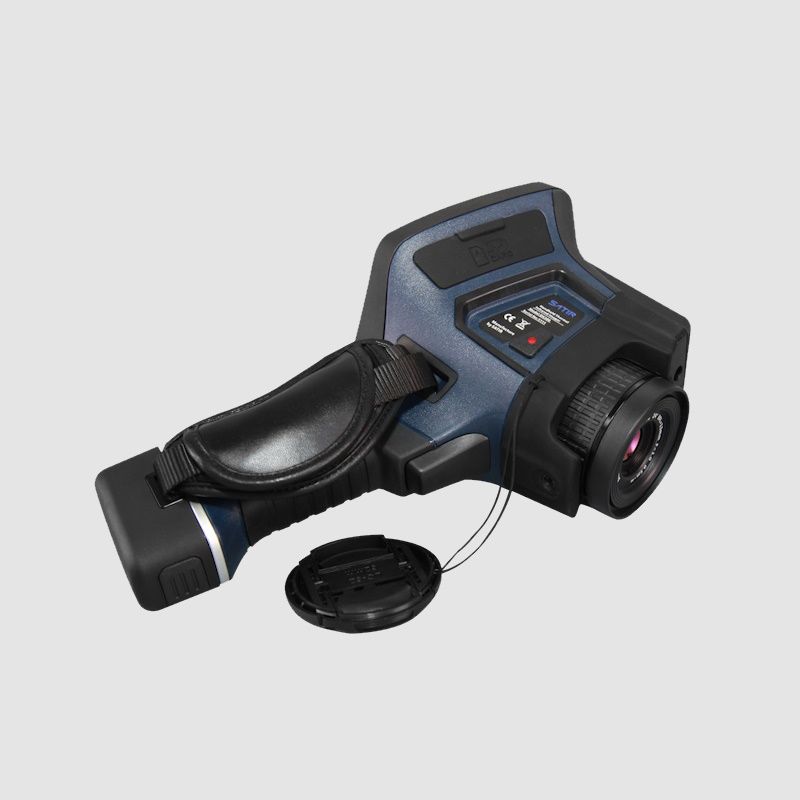

The Satir DX-300 Professional Handheld Thermal Camera is a professional thermal imager with 384x288 thermal resolution.
Its large 4.3” touch screen provides flexible and extremely easy operation.
The DX-300 has a 384x288 thermal detector that produces 110,592 pixels, giving the user a clear, vivid and detailed image. There are three imaging modes: thermal, digital and Duo Vision, which overlays the thermal image with the digital image.
The temperature range of the DX-300 can be extended on request from the standard -20 to 650°C up to +1000°C, +1500°C or +2000°C, which means it can be widely used in high temperature applications.
Analysis functions included with the DX-300 include 10 moving points, automatic hot/cold spot, 5 lines, 10 area boxes.
A 32 GB removable SD Memory Card is available to capture all video and images.
Users can audio annotate thermal images via a Bluetooth headset. The recording can be saved along with the thermal image and played back with the headset or using SatirReport software.

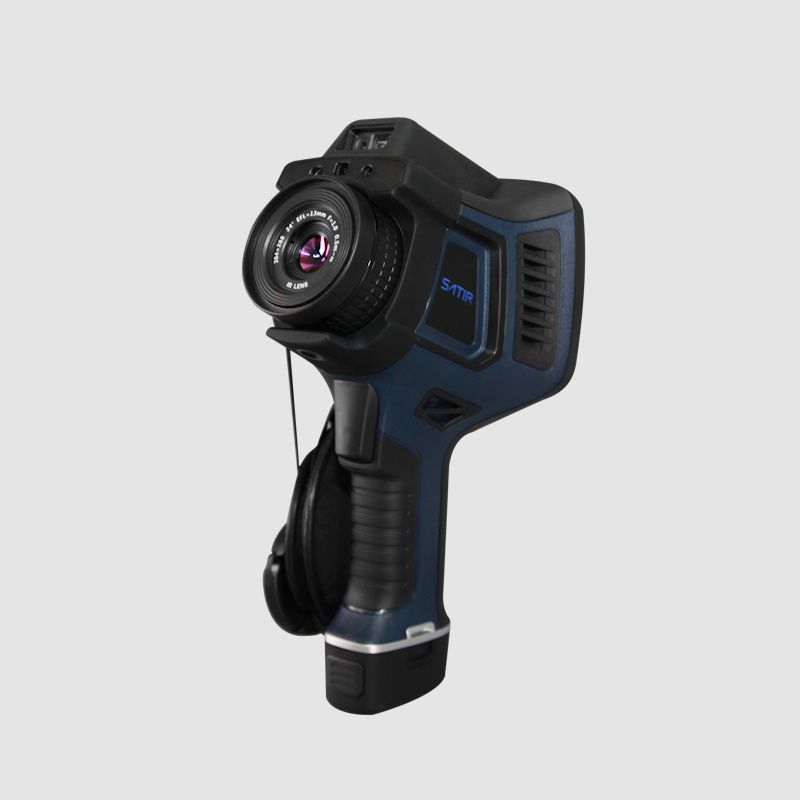

The DX-300 has optional lenses that enhance image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°. With these lenses, close or distant images will be much clearer.
Product Code: DX-300
