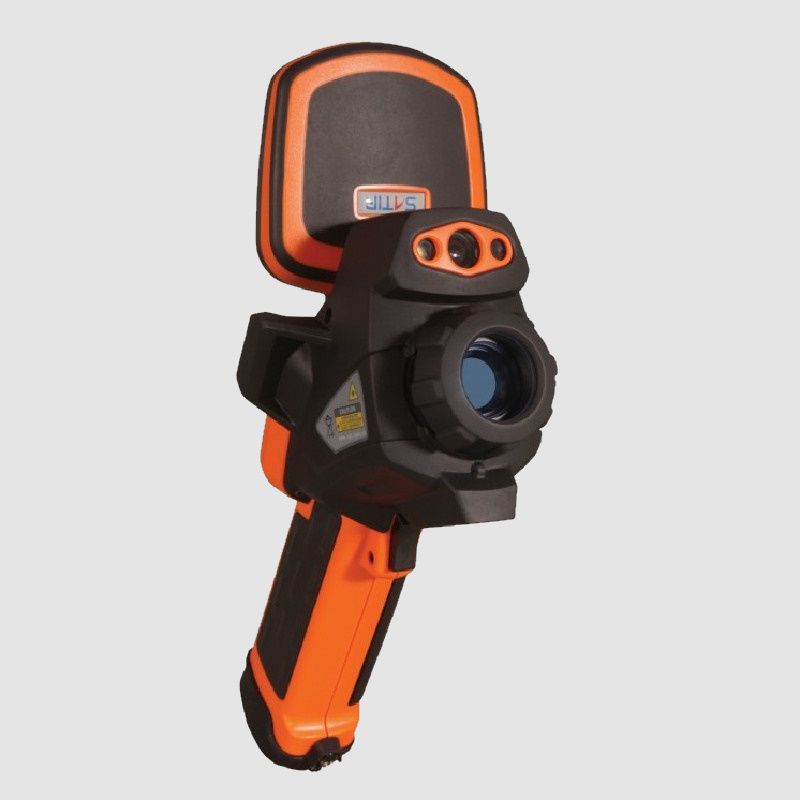

The Satir Hotfind-S Handheld Thermal Camera (384x288) is an industrial advanced thermal imager.
The Satir Hotfind-S model is one of the most popular Mid-Level Thermal Cameras from our Satir brand for several reasons, including the fact that its high-performance imaging software can deliver excellent quality images for a wide range of industrial applications.
The Hofind-S features a 384x288 thermal detector that produces 110,592 pixels, giving the user a clear, crisp and detailed image. It has three imaging modes: thermal, digital and Duo Vision, which overlays the thermal image with the digital image.

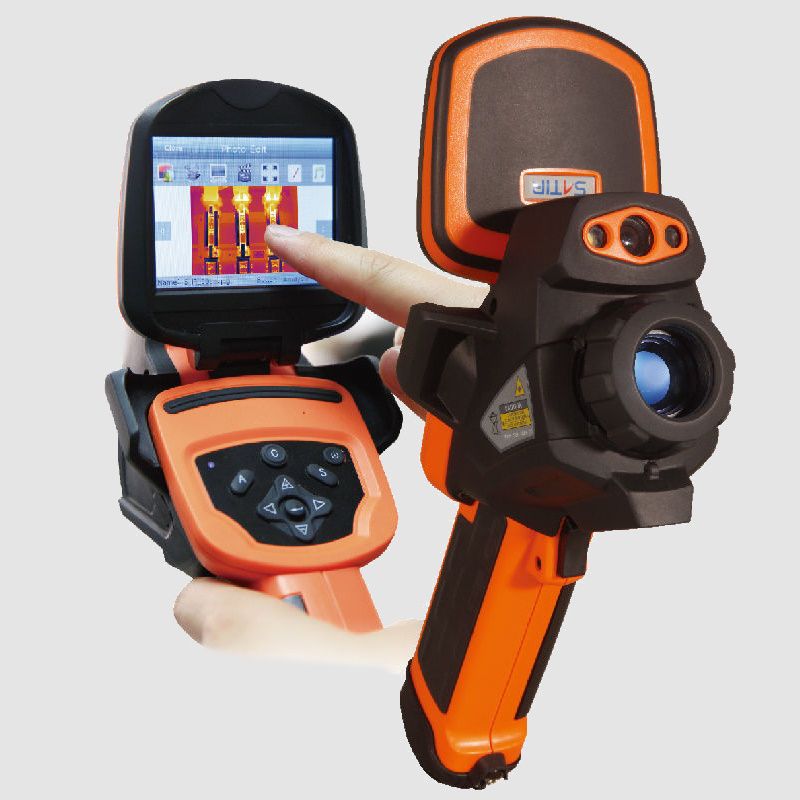

Hotfind-S comes with two control methods, keypad and touch screen. This provides the user with flexible and extremely easy operation.
The Hotfind-S has an expandable temperature range, which can be extended on request from the standard -20 to 650°C up to +1000°C, +1500°C or +2000°C, meaning that the HotFind series can also be widely used in high temperature applications.
Users can audio annotate thermal images via a Bluetooth headset. The recording can be saved along with the thermal image and played back with the headset or using SatirReport software.
Analysis functions included with Hotfind-S include 8 moving points, automatic hot/cold spot, profile, 2 lines, 5 area boxes, isotherm.
The HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. Thermal images are displayed in real time, which guarantees complete and vivid thermal imaging without ghosting.
Full radiometric thermal data can be transferred to a PC in real time via USB connection for analysis and reporting in ReportIR USB software.
Hotfind-S can be easily mounted on a tripod with the standard 1/4"_20 mounting socket. Adding the optional AC adapter allows the user to use Hotfind-S for continuous monitoring.
Hotfind-S has optional lenses to enhance image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°. With these lenses, close or distant views will be much clearer.
Technical Specifications
- Display : 3.5” touch LCD screen (movable)
- Thermal resolution : 384 x 288
- LCD resolution : High resolution CCD, 5 million pixels
- Field of view : 24° × 18° (options available)
- Focusing distance : 15 cm
- IFOV : 1.1 mrad
- Thermal sensitivity (NETD) : 0.035°C (@30°C)
- Detector Type : UFPA
- Digital zoom : 1x to 10x
- Temperature measurement range : -20°C to 650°C (1000°C, 1500°C and 2000°C optional)
- Measurement accuracy : ±2% / ±2°C
- Spectral range : 7.5 - 14 μm
- Focusing : Manual
- Measurement Modes : 8 moving points, automatic hot/cold point, 2 lines, 5 boxes and isotherm
- Verification : Ambient temperature / Emissivity / Humidity / Distance
- Color palette : Iron, Reverse Iron, Rainbow, Feather, Gray and Reverse Gray
- Alarm Feature : Yes
- Flashlight Feature : Yes
- Laser Pointer : Yes
- Video Recording : Available
- Image options : Thermal, digital, thermal+digital and PiP (Picture in Picture)
- Storage memory 16GB memory card
- File format : JPG
- Adding a description : Audio and text
- Communication interface : USB and Bluetooth
- Battery : Rechargeable lithium battery
- Working time : 5 hours
- Protection : IP54
- Shock / Vibration protection: 25G / 2G
- Drop test : 1.8 meters
- Dimensions : 215 x 80 x 219 mm
- Weight : less than 800 grams
- Operating temperature : -20°C to 50°C
- Storage temperature : -40°C to 70°C
- Humidity value : 10% to 95%, non-condensing
Optional Lenses:
- 7x5.25°/ min focusing 5m / 0.32mrad
- 12x9° / min focusing 0.5m / 0.55mrad
- 24x18° / min focus 0.15m / 1.1mrad (available in standard delivery)
- 48x36° / min focusing 0.1m / 2.2mrad
Delivery Content:
- Hotfind-S thermal imager
- Charger
- Batteries
- Sunshade
- Memory card
- Calibration certificate (production)
- Bluetooth headset
- USB cable
Product Code: Hotfind-S
