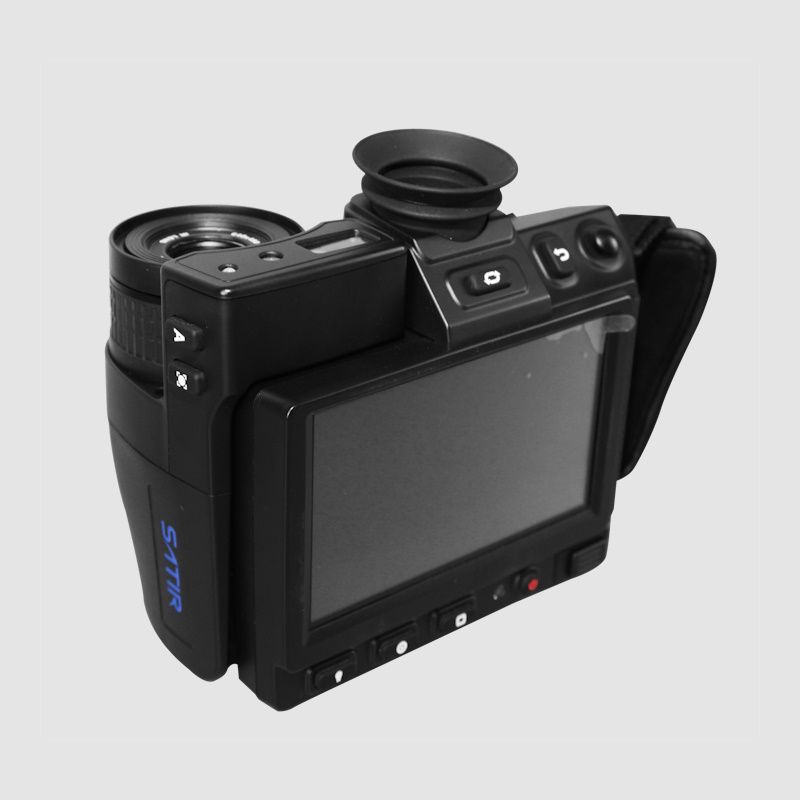

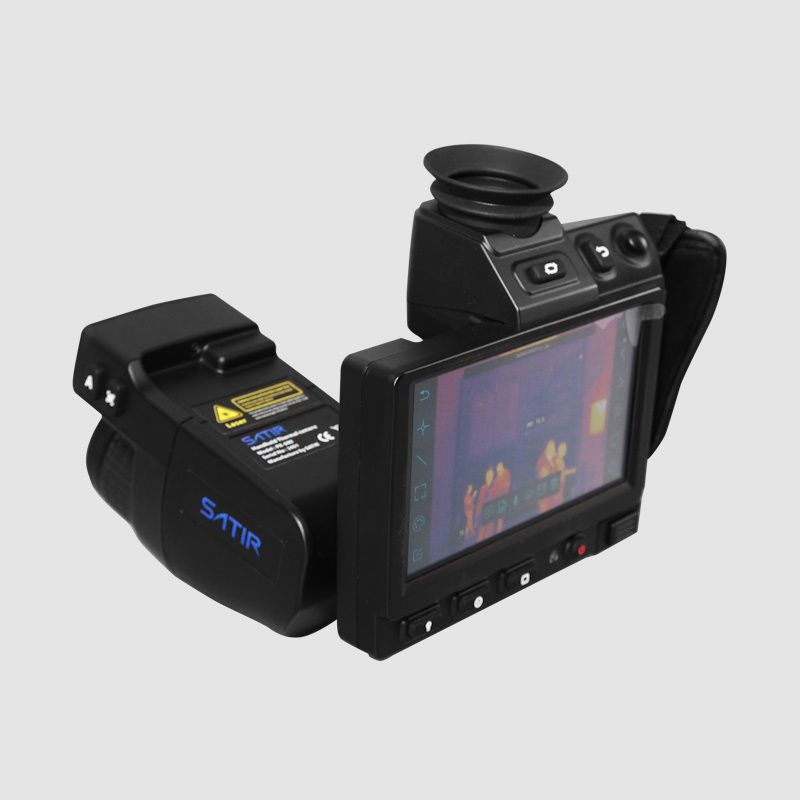

The Satir PX-600 Professional Handheld Thermal Camera is a professional thermal imager with 640x480 thermal resolution and a new design.
The large 5.8” touchscreen provides flexible and extremely easy operation.
The PX-600 has a 640x480 thermal detector, which provides the user with a clear, vivid and detailed image. There are three imaging modes: thermal, digital and Duo Vision, which overlays the thermal image with the digital image.
The 60Hz image refresh rate ensures a very smooth thermal image.
Bluetooth, WiFi, HDMI and USB interfaces provide a wide range of connectivity. It can also record the location of the captured images with GPS function.
Manual and automatic focusing (focus) feature allows you to capture images very clearly.
The temperature range of the PX-600 can be extended on request from the standard -20 to 650°C to +1000°C, +1500°C or +2000°C, which means it can be widely used in high temperature applications.
Analysis functions included with the PX-600 include 10 moving points, automatic hot/cold spot, 5 lines, 10 area boxes.
A 32 GB removable SD Memory Card is available to capture all video and images.
The PX-600 has optional lenses to enhance image quality and Field of View (FOV), currently the following lenses are available on request, 6°, 12°, 48°. With these lenses, close or distant images will be much clearer.
Product Code: PX-600
