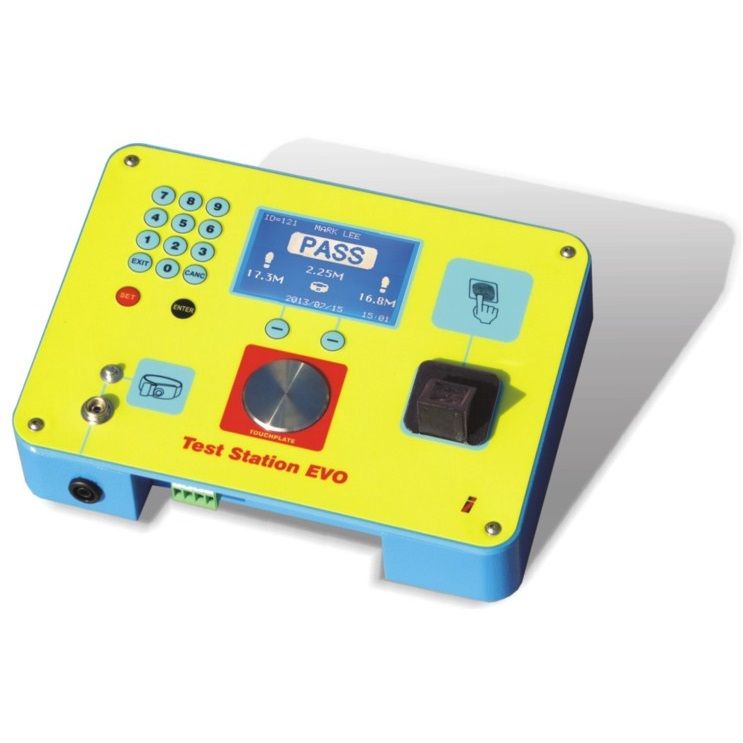

The Test Station EVO records and documents the parameters of the ESD protection of the personnel(wriststrap and footwears).
It can be used both wall-mounted or in a console configuration.
Technical features:
- Measurement of bracelets and footwears according to IEC61340-5-1
- Up to 1000 different users identified through fingerprint recognition or manual recognition (entering the ID number)
- Fingerprint recognition 1,5 sec
- Datalogger can store data for the last 10000 access (date and time, user name and ID, the resistance values of the bracelet and shoes, etc ...)
- Control footwear separate (left and right)
- Relay output for controlling the opening of the access door to the EPA
- LCD display with blue backlight 160 x 104 pixels, 74 x 46mm viewable area
- Beep to indicate clearly PASS or FAIL test of the protections
- Voltage Test selectable to 50V or 100V.
- Programmable tresholds
- ISO9000 Traceable Calibration Certificate included
- Program to manage the data recorded included in the Test Station EVO (compatible with Win XP/7/8/10)
Product Code: WST-1925
