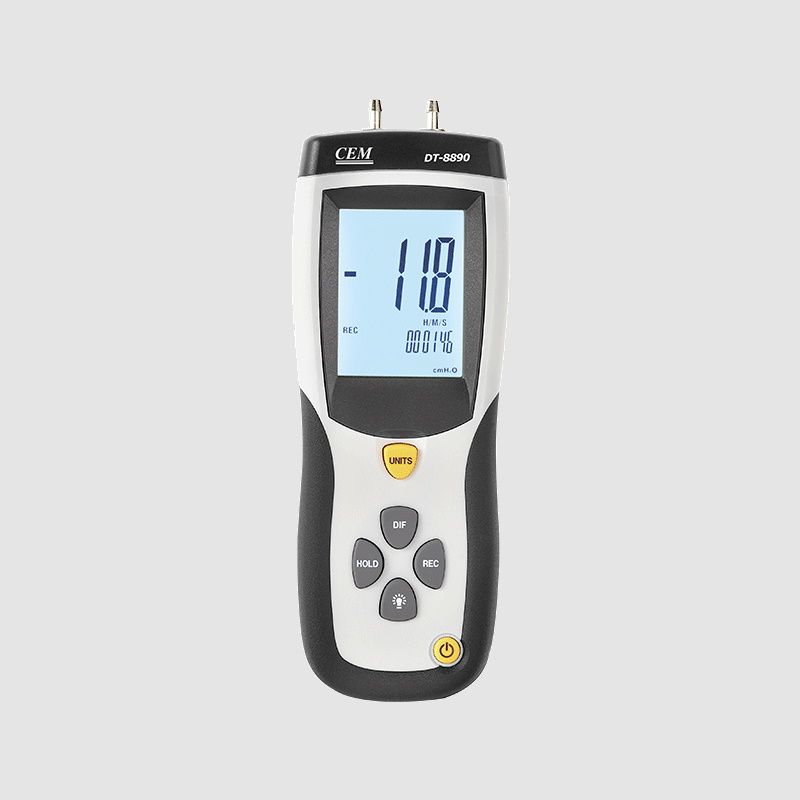

CEM DT-8890 Differential Pressure Manometer
Product code: DT-8890
Model: DT-8890
Brand: CEM Instruments
Warranty Time: 2 Yıl
REQUEST FOR SUBMISSION
Save
Print
- Low Range/High Resolution Gauge or Differential Pressure
- 11 selectable units of measurement
- Max/Min/Avg. recording and Relative with time stamp
- Data Hold and Auto power off functions
- Large Backlit LCD display
- Zero function for offset correction or measurement
- Built-in USB (software and cable included)
- USB port includes software
- Confirms to CE, EMC, EN: 61326
Accuracy: ±0.3%FSO
Repeatability: ±0.2% (Max.+/ -0.5% FSO)
Linearity/Hysteresis: ±0.29% FSO
Pressure Range: ±5PSI (±138.3 inH2O)
Unit - Range - Resolution
inH2O - 138.3 - 0.1
psi - 5 - 0.001
mbar - 344.7 - 0.1
kPa - 34.47 - 0.01
inHg - 10.18 - 0.01
mmHg - 258.5 - 0.1
ozin2 - 80 - 0.01
ftH2O - 11.53 - 0.01
cmH2O - 351.5 - 0.1
kgcm2 - 0.351 - 0.001
bar - 0.344 - 0.001
Repeatability: ±0.2% (Max.+/ -0.5% FSO)
Linearity/Hysteresis: ±0.29% FSO
Pressure Range: ±5PSI (±138.3 inH2O)
Unit - Range - Resolution
inH2O - 138.3 - 0.1
psi - 5 - 0.001
mbar - 344.7 - 0.1
kPa - 34.47 - 0.01
inHg - 10.18 - 0.01
mmHg - 258.5 - 0.1
ozin2 - 80 - 0.01
ftH2O - 11.53 - 0.01
cmH2O - 351.5 - 0.1
kgcm2 - 0.351 - 0.001
bar - 0.344 - 0.001
Product Code: DT-8890
Save
Print
Accuracy: ±0.3%FSO
Repeatability: ±0.2% (Max.+/ -0.5% FSO)
Linearity/Hysteresis: ±0.29% FSO
Pressure Range: ±5PSI (±138.3 inH2O)
Unit - Range - Resolution
inH2O - 138.3 - 0.1
psi - 5 - 0.001
mbar - 344.7 - 0.1
kPa - 34.47 - 0.01
inHg - 10.18 - 0.01
mmHg - 258.5 - 0.1
ozin2 - 80 - 0.01
ftH2O - 11.53 - 0.01
cmH2O - 351.5 - 0.1
kgcm2 - 0.351 - 0.001
bar - 0.344 - 0.001
