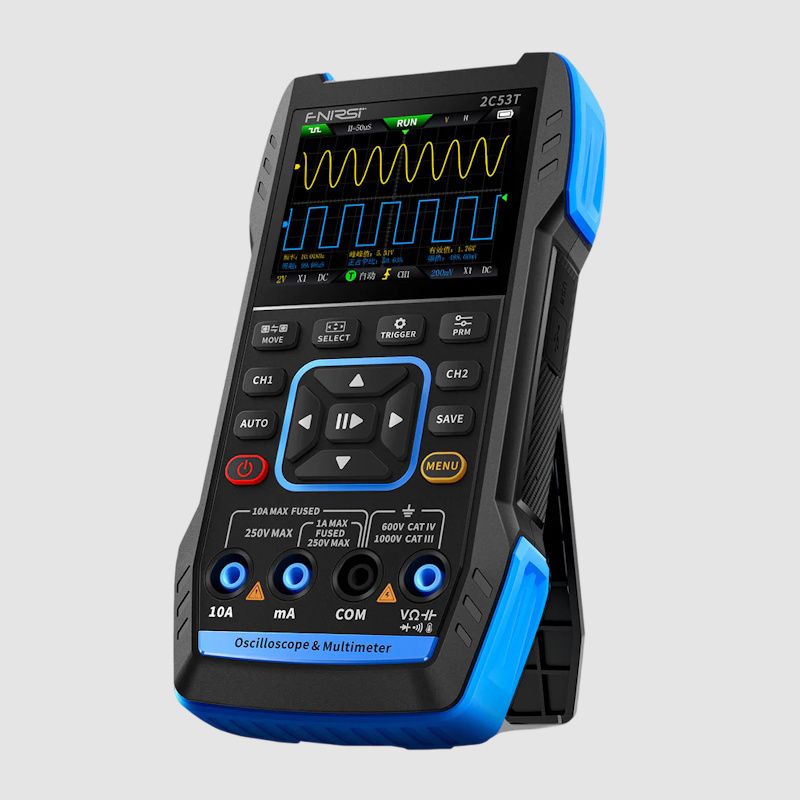

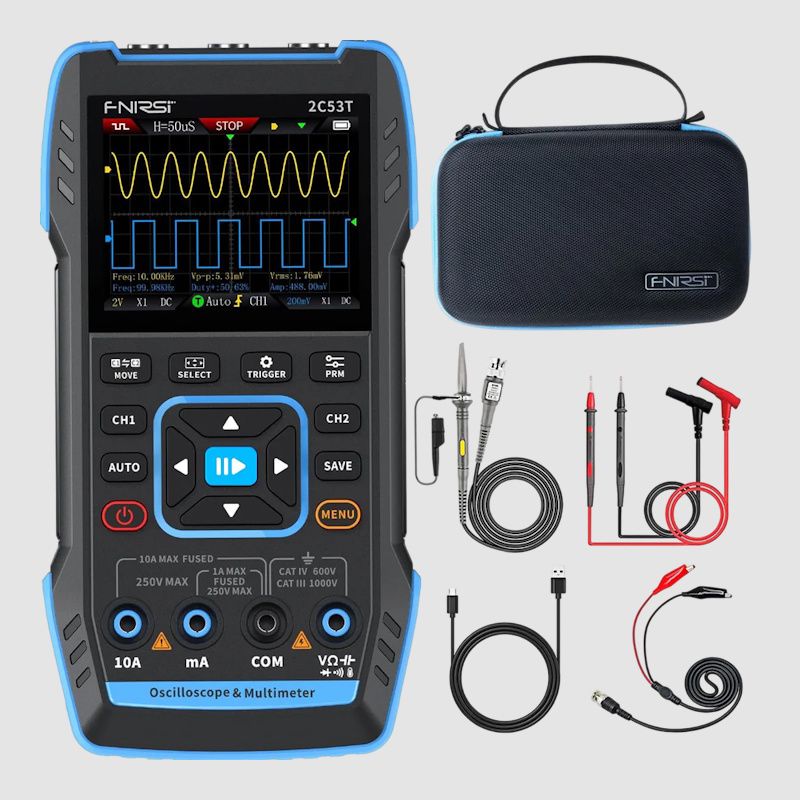

The Fnirsi 2C53T is a versatile and highly practical three-in-one dual-channel digital oscilloscope launched by Fnirsi, designed for professionals in the maintenance and research industries. This device combines the functions of an oscilloscope, a multimeter and a signal generator.
The oscilloscope uses an FPGA+ARM+ADC hardware architecture that includes an integrated overvoltage protection module supporting 250MS/s sampling rate, 50MHz analog bandwidth and peak voltage measurements up to +/- 400V. It also supports waveform screenshot recording and display for secondary analysis.
The multimeter function offers 4.5 digits with 19,999 counts True RMS, supports AC/DC voltage and current measurements as well as capacitance, resistance, diode and continuity measurements, making it an ideal multifunctional instrument for professionals, factories, schools, enthusiasts or home use.
The built-in DDS function signal generator can output 13 types of function signals with a maximum output frequency of 50KHz and a step size of 1Hz. Output frequency, amplitude and duty cycle are adjustable.
It features a 2.8" 320x240 resolution high-definition LCD display and a built-in 3,000mAh rechargeable lithium battery with up to 6 hours standby time. Its compact size provides users with more powerful practical functions and excellent portability.
Key Specifications
- Display: 2.8" color screen
- Screen Resolution: 320x240
- Charging: Type-C (5V/1A)
- Battery: 3,000 mAh
- Dimensions: 167 x 89 x 35 mm
- Weight: 300 grams
Oscilloscope Specifications
- Channel: Dual (two) channels
- Bandwidth: 50 Mhz
- Sample rate: 250MS/s
Function (Signal) Generator Features
- 13 waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, inverse step wave, exponential rise, exponential fall, DC, multi-sound, Sinker pulse, Lorentz wave
- Output frequency: 0-50kHz
Multimeter Specifications
- DC Voltage: 1000V
- AC Voltage: 750V
- DC and AC Current: 10A
- Resistance: 20MΩ
- Capacitance: 999.9uF - 99.99mF
- Continuity and diode test: Yes
- Temperature measurement: -55 - 1300°C
Please refer to the files tab for detailed technical information.
Product Code: D2C53T
